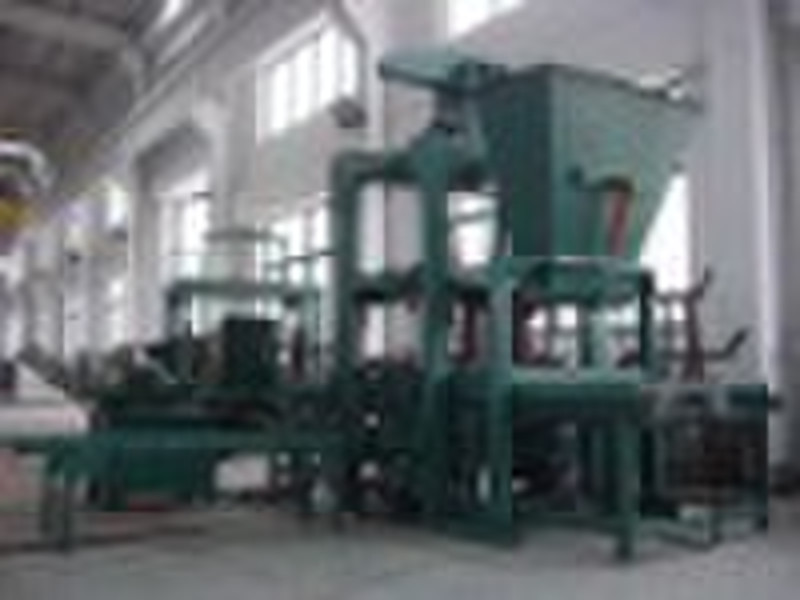

QF5-35 Model Concrete Block Making Machine

Brick Making Machine Features: 1) Full hydraulic drive 2) Double feed 3) Organic combination of press and vibration 4) Double control of height and density 5) Small cubage 6) Strong excited force. 7) Simpe operation 8) Convenient maintenance 9) Reliable function 10) Economical, practical and advanced machine 11) Can manufacture color pavers, lawn pavers, small concrete hollow blocks, thin wall hollow blocks, kerb bricks, lattice wall blocks, tree-well bricks and slope protection blocks, etc. which can be widely used in varoius constructions 12) Has series from single machine to automatic production line. QF5-35 specifications: 1) Box dimension (L x W x H): 1,060 x 540 x 200mm 2) Quantity of molding brick: a) S-style interlocking paver: 16 b) Block: 5 3) Molding cycle: 20-30 sec/ cycle 4) Production: 350 - 400sqm/shift 5) Vibration frequency: 75-85Hz 6) Power: 13.5kW 7) Weight: 5MT 8) Overall dimensions (L x W x H): 4,400 x 3,500 x 2,300mm Product dimensions: 1) S-style interlocking paver: 225 x 112.5 x 60/50/80/100mm, 40pcs/sqm 2) Small hollow block: 390 x 190 x 190mm 3) Brick: 240 x 115 x 90mm Outer packing: container
